Electric regulating valve
Now：Home?Products?Electric regulating valve

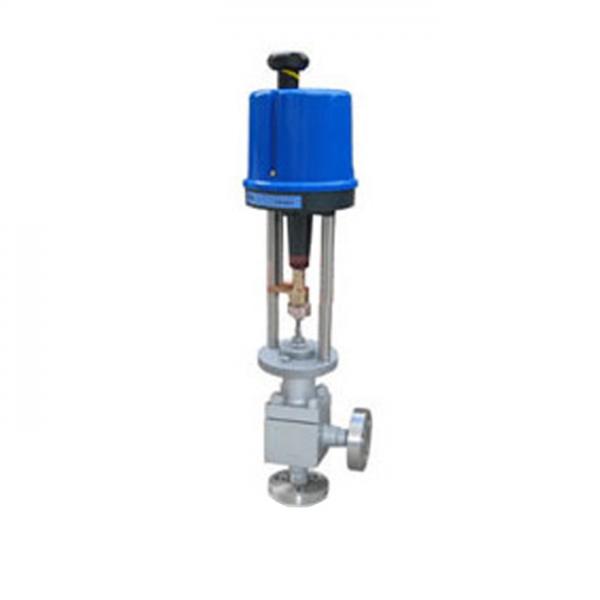

ZDLSM Eletronic Angle Cage Control Valve

 ZDLSM Electronic Angle Cage Control Valve is equipped with 3610/3810/PSLElectronic actuator or intelligent actuator. It also has been widely used for controlled gases, liquids, steam and other media. It is especially suitable for the medium, which is hyper viscosity, Easy to crystallize, and containing suspended particles. It is used in right angle of pipeline, also can substitute for ZDLSPseries in the working place of large pressure differential.
Detail
Main technical parameters
Body size (mm）
20
25
32
40
50
65
80
100
125
150
200
Rated flow coefficient KV
Liner
6.9
11
17.6
27.5
44
69
110
176
275
440
690
Percentage
6.3
10
16
25
40
63
100
160
250
400
630
Rated travel （mm）
16
25
40
60
Electronic actuator or intelligent actuator
361LSA-08
381LSA-08
PSL201
361LSA-20
381LSA-20
PSL202
361LSB-30
381LSB-30
PSL204
361LSC-65
381LSC-65
PSL312
Body size（mm）
250
300
350
DN300 or DN350 (would choose double seat valve or angle valve)
Rated flow coefficient KV
Liner
1000
1650
2160
Percentage
900
1500
2000
Rated travel（mm）
100
Actuator
361LSC-99/381LSC-99/PSL314
Signal
4-20mA 1-5V
Electrical source
220V 50HZ or (380V)
Flow characteristic
liner、percentage
Range ability
50
Seat leakage
Metal seat：class Ⅲ、class Ⅳ   soft seat：class Ⅵ
Nominal pressure
Mpa
1.6, 2.5, 4.0,6.4(6.3) /2.0, 5.0, 11.0,15.0
Bar
16, 25, 40, 64(63), 100,160/20, 50, 110,150
Lb
ANSI: Class150、Class300、Class600、Class900
Working temperature
(0C)
Normal temperature type
-20～200、-40～250、-60～250
Heat
Radiating type
-40～450、-60～450
High temperature type
450～560(high temperature material )
Low temperature type
-60～-100、-100～-200、-200～-250
Regulator /cutting-off type
-40~150 , -60~200

BUYER GUIDE
Data:
Type of valve, Valve size, Purpose
Body size, Nominal pressure
Working temperature
Fluid name, Flux of medium, Fluid state
Bonnet type,
Flange connection type
Flange standard, Flange interval
Accessory:
Actuator type
Input Voltage
Input signal
Other especial demands
