Digital Display Controller
Now：Home?Products?Digital Display Controller

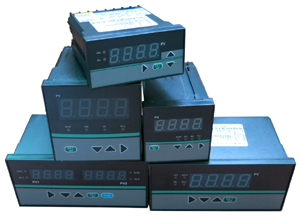

Digital Display Controller

Model:JD-C403/703/803/903

We can provide OEM service

E-mail: pearls@judongkj.cn

Product description：

Digital display controller provides easy operation with measurement precision of 0.3%; 7 types of dimensions available; double four-digit LED display, supporting thermocouple, thermal resistance, voltage (extraction operation available), current (extraction operation available), and transducer input; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc. Supporting 2-way alarm, 1-way control output or RS485 communication interface adopting standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output and power end; 100-240V AC/DC or 20-29V DC switch power supply; standard snap-in installation; operating temperature: 0-50℃, relative humidity: 5-85% RH without coagulation.

Download:Digital Display Controller Data

Detail

Introduction

Display controller provides easy operation with measurement precision of 0.3%; 7 types of dimensions available; double four-digit LED display, supporting thermocouple, thermal resistance, voltage (extraction operation available), current (extraction operation available), and transducer input; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc. Supporting 2-way alarm, 1-way control output or RS485 communication interface adopting standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output and power end; 100-240V AC/DC or 20-29V DC switch power supply; standard snap-in installation; operating temperature: 0-50℃, relative humidity: 5-85% RH without coagulation.

Input signal and matching sensor

Degree no.Pn Signal types Measuring range Degree no.Pn Signal types Measuring range
0

B

400～1800℃

18

0～350Ω

-1999～9999

1 S

0～1600℃

19

3 0～350Ω

-1999～9999

2 K

0～1300℃

20

0～20mV

-1999～9999

3 E

0～1000℃

21

0～40mV

-1999～9999
4 T

-200.0～400.0℃

22

0～100mV

-1999～9999

5 J

0～1200℃

23

-20～20mV

-1999～9999

6

R

0～1600℃

24

-100～100mV

-1999～9999

7

N

0～1300℃

25

0～20mA

-1999～9999

8

F2

700～2000℃

26

0～10mA

-1999～9999

9

Wre3-25

0～2300℃

27

4～20mA

-1999～9999

10

Wre5-26

0～2300℃

28

0～5V

-1999～9999

11

RTD  Cu50

-50.0～150.0℃

29

1～5V

-1999～9999

12

RTD  Cu53

-50.0～150.0℃

30

-5～5V

-1999～9999

13

RTD  Cu100

-50.0～150.0℃

31

0～10V

-1999～9999

14

RTD  Pt100

-200.0～650.0℃

32

0～10mA

-1999～9999

15

RTD  BA1

-200.0～600.0℃

33

4～20mA

-1999～9999

16

RTD  BA2

-200.0～600.0℃

34

0～5V

-1999～9999

17

0～500Ω

-1999～9999

35 1～5V
-1999～9999

Selection considerations

Provided to be some technical details:
1. Input signal
2. Output signal

3. Power supply

4.With what sensors do you use?
