On-Line Chlorine Analyzer
Now：Home?Products?On-Line Chlorine Analyzer

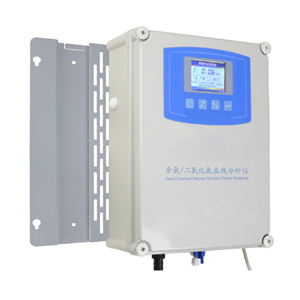

Online Residual Chlorine Analyzer

Model:POP-8300A

We can provide OEM service

E-mail: pearls@judongkj.cn

Product description：

POP-8300A Integrated Free Chlorine /CLO 2 /pH Online Analyzer comes together intelligent control meter, Free Chlorine/CLO 2 sensor, pH sensor, Temp probe and matching constant flow device and other relative accessories,with tight structure, easy transportation and installation and free of maintenance features.

Download:Online Residual Chlorine Analyzer Data

Detail

Product features

1.Wall mounted integrated Free Chlorine/CLO 2 online analysis system integration;
2.Embedded free chlorine, chlorine dioxide analysis software of two mathematical models;
3.3.5"LCD color display,bilingual Chinese/English ,complete operation guided ;
4.Constant flow rate control with the patents, make sure the measurement accuracy,do not changed by
the the pipeline pressure ;
5.Anti-siphon design, the system automatically in the conservation of the state after the shutdown;
6.Double channels isolated (4～20)mA，Instrument / Transmitter for selection;
7.High / low limit setting relay*2，Photoelectric programmable*1， switching / pulse regulating state；
10.Protective plastic chassis, preset back cover, the independent panel.

Technical details

Sensor
 Free Chlorine/pH/Temperature
Measurement range

Free Chlorine:(0.10~2.00)mg/L(ppm);(0.10~20.00)mg/L(ppm)

pH:2.00~12.00(for the Free Chlorine)

Temp:(0.0~99.9)℃(Temp. Compensation Pt1000)

Resolution

Free Chlorine:0.01mg/L

pH:0.01

Temp:0.1℃

Accuracy

Free Chlorine:90% confidence interval ±10％FS

pH:0.1level

Temp :±0.5℃

output signal
 4-20mA
Power supply
 System AC 220V /50Hz, indicator DC24V.
Communication port
 RS485 MODBUS RTU RS485
Output signal
 4～20mA、1～5V、0～5V、1～10V、0～10Vetc.
Safe Overload
 200%FS
Working Temp.
 temperature：(0~50 )℃；humidity：≤85% RH（none condensation）
Environmental Temp.
 20～80℃
Storage
 Temperature：（0~60）℃; humidity：≤85%RH（none condensation）
Protection
 IP54（plastic protection cabinet, integration system）
Cabinet
 ABS
Cabinet size
 380mm×280mm×130mm（H*W*D）
installation
Wall mounted(with the preset back cover)
Cabinet
≤10kg

Application

Widely used for online monitoring HCIO/CLO2 free chlorine in residential&drinking water or food industries.It is designed for constructing swimming pool ,Spa online analysis and the sewage and
waste-water disinfection and drug Dosing control .

Selection considerations

Provided to be some technical details:
1. measuring range
2. measurement medium (liquid specific name)
3. output signal
4. maximum temperature
