Pressure Difference Transmitter
Now：Home?Products?Pressure Difference Transmitter

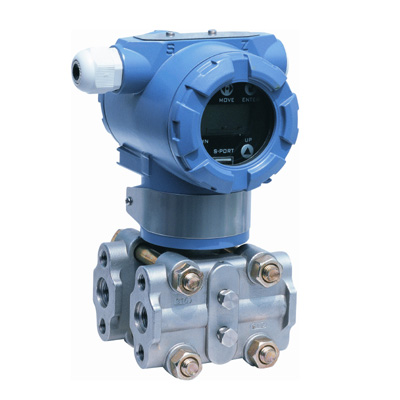

3351 Pressure Difference Transmitter

Brand: JUDON

Model:3351CC

We can provide OEM service

E-mail: pearls@judongkj.cn

Product Description:Intelligent differential pressure transmitter is based on mature and reliable sensor technology, combined with advanced single-chip computer technology and sensor digital conversion technology. The core component adopts sixteen bit single chip microcomputer, and its powerful function and high-speed computing ability ensure the good quality of transmitter.

Download:3351 Differential pressure transmitter Data

Detail

Product features

1.Minimum measuring range -60bar.

2.Maximum measuring range 0-400bar.

3.Adjustable zero

4.Signal output to PLC program
5.Lightning protection and protection radio frequency interference
6.Intrinsically safe explosion-proof
7.Small size, beautiful appearance, high cost performance
8.High precision, high stability, high reliability

Technical details

Measuring medium or Application

Liquid,gas or steam etc.

Operation mode

It can be measured liquid level and pressure.

Gauge pressure, absolute pressure, sealing pressure

Installation mode

1. Measuring pressure installation: water tank, pipe, other equipment at any position.
2. measure level installation: bottom or bottom side of water tank.

Display mode

Can be selected display type and without display type.

Range

-60pa-0-1bar to 0-400bar

Power supply

24VDC

Accuracy

0.075%F.S,0.1%F.S,0.25%F.S

Output signal

4～20mA、Hart protocol

Working Temp.

-25～80℃，-25～200 to 500℃ etc.high temperature can be customized

Environmental Temp.

-20～80℃

Diaphragm material

316L SUS, Hastelloy C,tantalum,Monel

Process connection

Welded pipe joint、Threaded connection、Flange connection.

Protection grade

IP65

weight

2.9kg

Application

Application：Can be widely used in petroleum, chemical, steel, electricity, light industry, environmental protection and other industrial fields, realize the measurement of the pressure, differential pressure, flow and level of industrial process, can be applied to a variety of harsh and dangerous environment and corrosive medium.

Selection considerations

Provided to be some technical details:
1. measuring range
2. measurement medium (liquid and gas specific name)
3. output signal
4. maximum temperature
5. Process connection
